High-Precision Resin 3D Printer

A high-precision resin 3D printer that improves prototyping efficiency and shortens the new product development lifecycle.

AccuFab-L4K is a high-precision resin 3D printer independently developed by SHINING 3D. With the help of 4K resolution and 192 x 120  x 180 mm print size, AccuFab-L4K produces extraordinary print results with high fidelity while  achieving continuous and stable  operation. High Precision

• High Resolution & Accuracy (50um)
• comes with 2 Large resin tank
• comes with 1 large stainless steel platform

Technical Specification

Optical Spec

Resolution: 3840 × 2400
Pixel Size: 0.05 mm
Wavelength: 405 nm
Light Intensity: 3mw / cm^2
Light Source: UV LED + LCD

Print Spec

Print Size: 192 × 120 × 180 mm
Print Speed: 10 ~ 50 mm/h
Tolerance: ±0.05 mm
Layer Thickness: 0.025 / 0.05 / 0.075 / 0.1 mm

Environment Spec

Working Temperature: 20℃ ～ 30℃
Working Humidity: 30% ～ 70%

Others

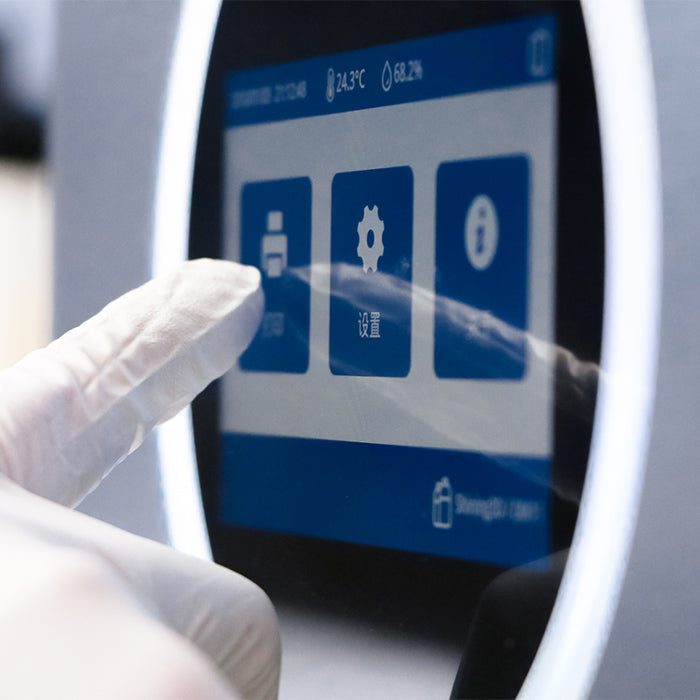

Interface: 5” touch screen
Connection: Wi-Fi / Ethernet / Thumb drive
Weight: 19 kg
Printer Dimensions: 360 × 360 × 530 mm
