BM3D.us
Surgical Guide SG01 1kg
Surgical Guide SG01 1kg
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Unit price
/
per
Couldn't load pickup availability

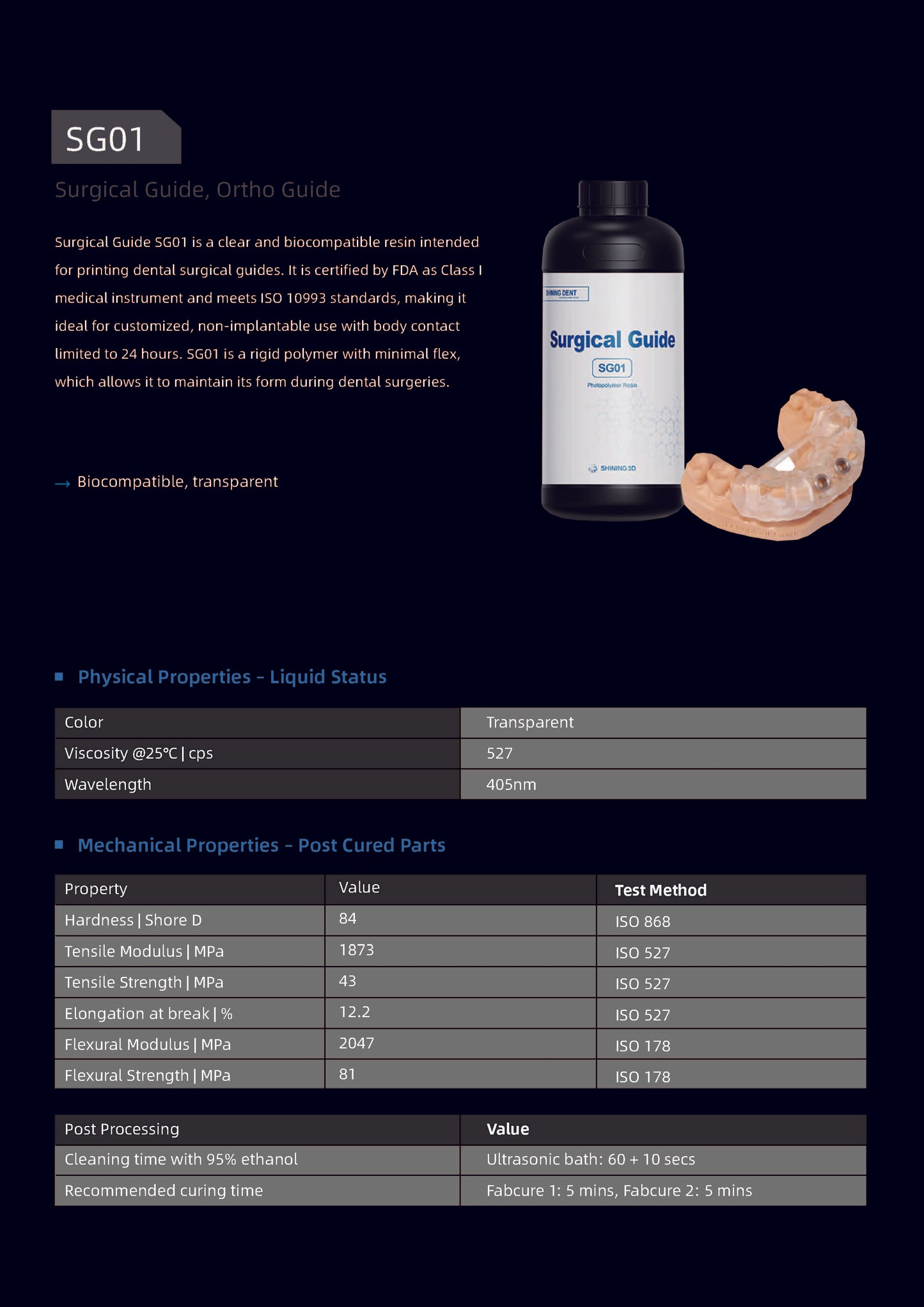

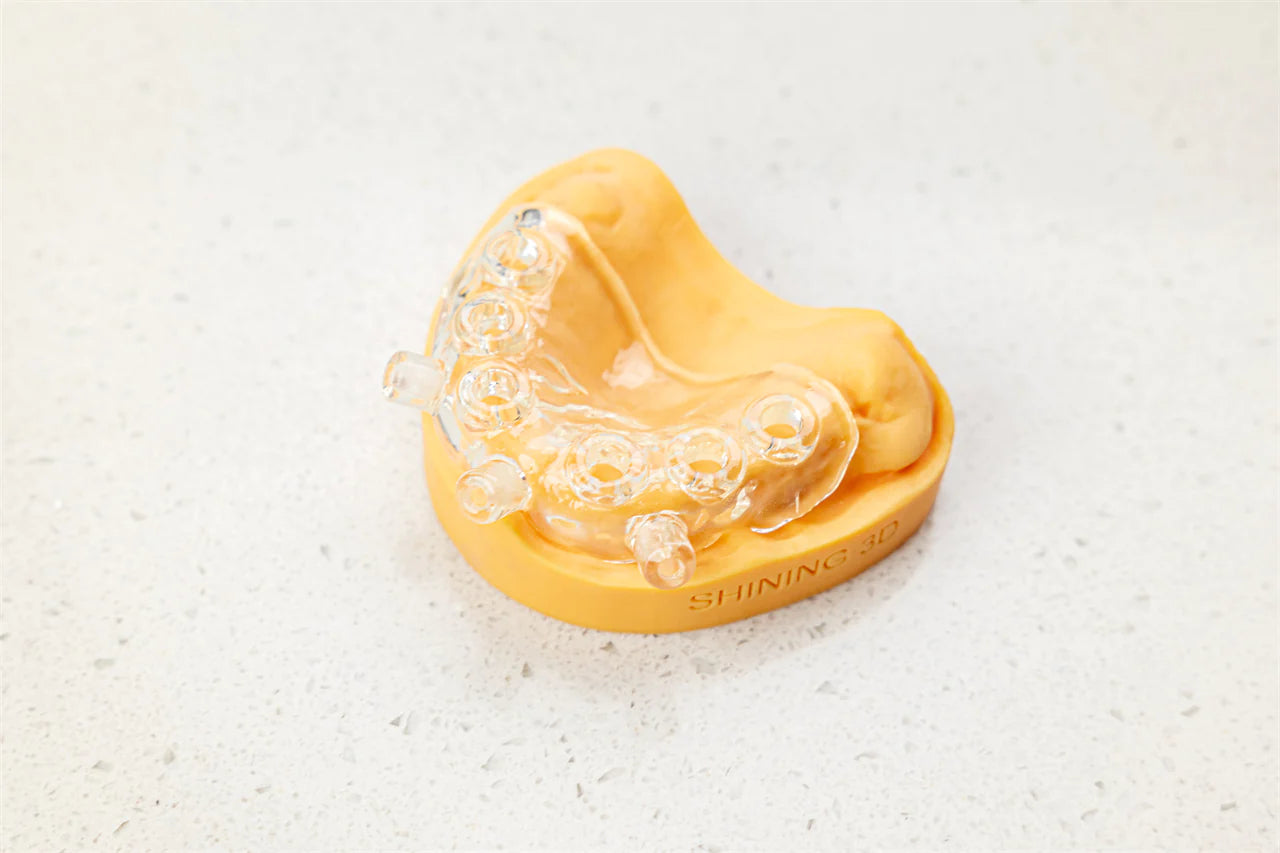

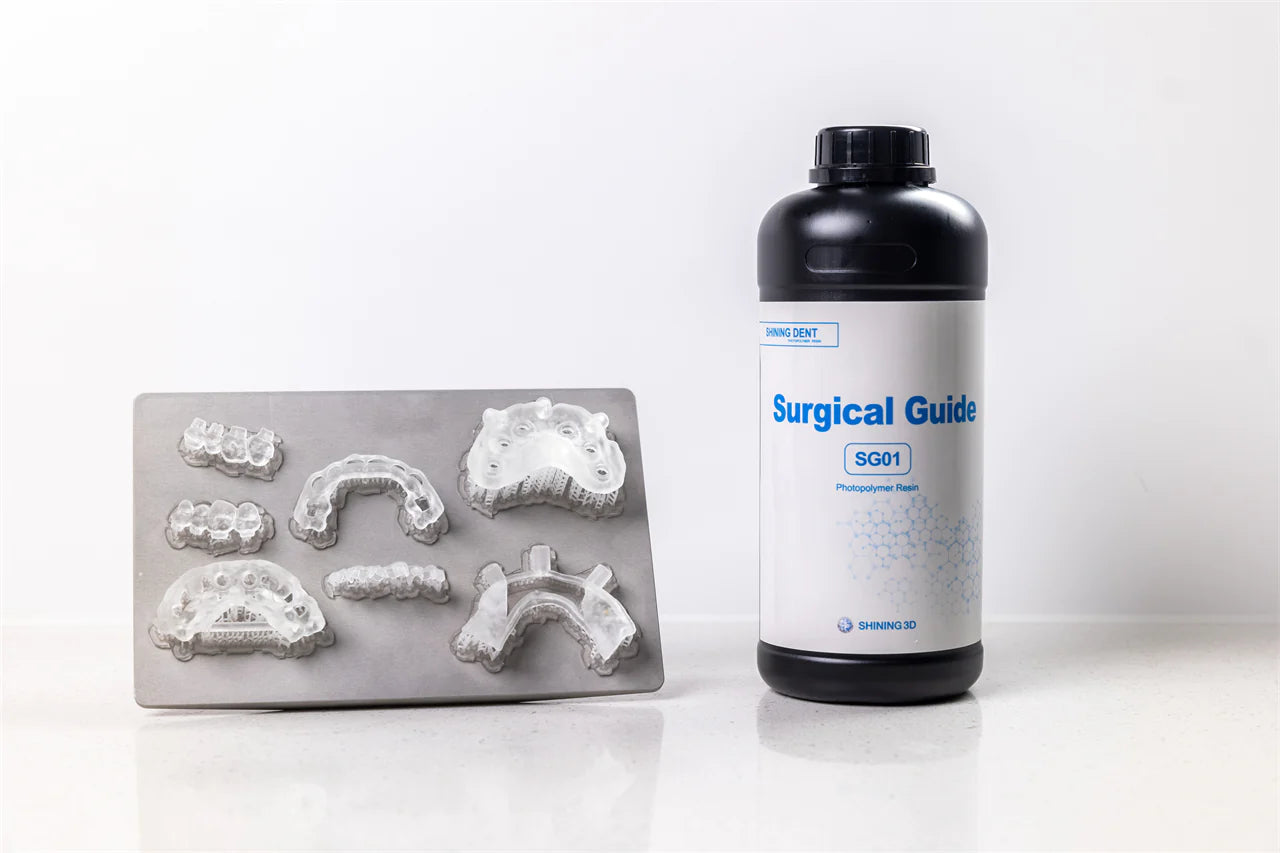

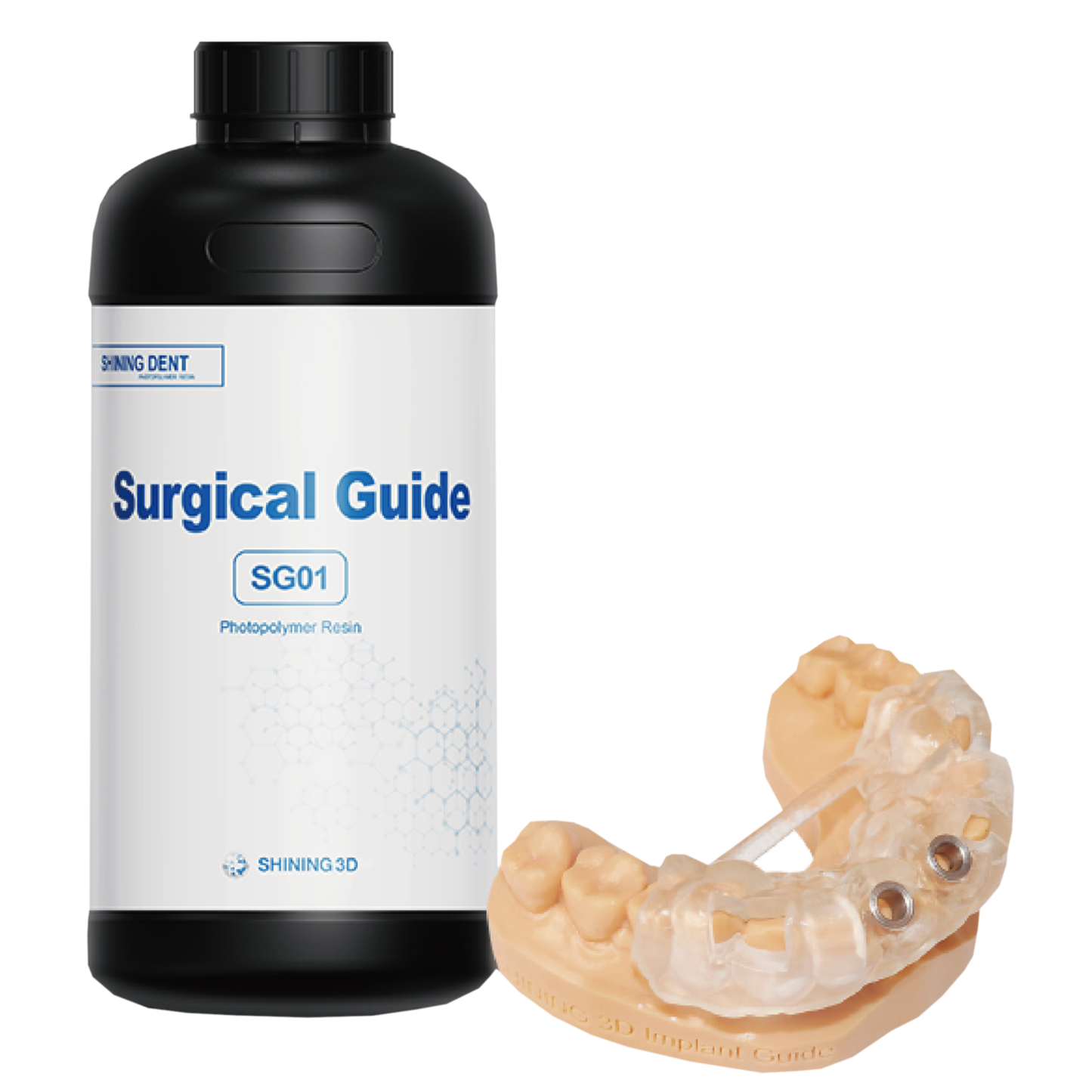

Surgical Guide SG01 is a clear and biocompatible resin intended for printing dental surgical guides. It is certified by FDA as Class I medical instrument and meets ISO 10993 standards, making it ideal for customized, non-implantable use with body contact limited to 24 hours. SG01 is a rigid polymer with minimal flex, which allows it to maintain its form during dental surgeries.
Physical Properties – Liquid Status
- Color Transparent
- Viscosity @25℃ | cps 527
- Wavelength 405nm
Mechanical Properties – Post Cured Parts
- Hardness | Shore D Value: 84 | Test Method: ISO 868
- Tensile Modulus | MPa Value: 1873 | Test Method: ISO 527
- Tensile Strength | MPa Value: 43 | Test Method: ISO 527
- Elongation at break | % Value: 12.2 | Test Method: ISO 527
- Flexural Modulus | MPa Value: 2047 | Test Method: ISO 178
- Flexural Strength | MPa Value: 81 | Test Method: ISO 178
- Cleaning time with 95% ethanol Ultrasonic bath: 60 + 10 secs
- Recommended curing time Fabcure 1: 5 mins | Fabcure 2: 5 mins
Shipping Fee
- 1 - 6 bottles of any type of resins: shipping fee USD 15/shipment
- > 6 bottles of any type of resins: Free Shipping
Certificate
Delivery & Storage
