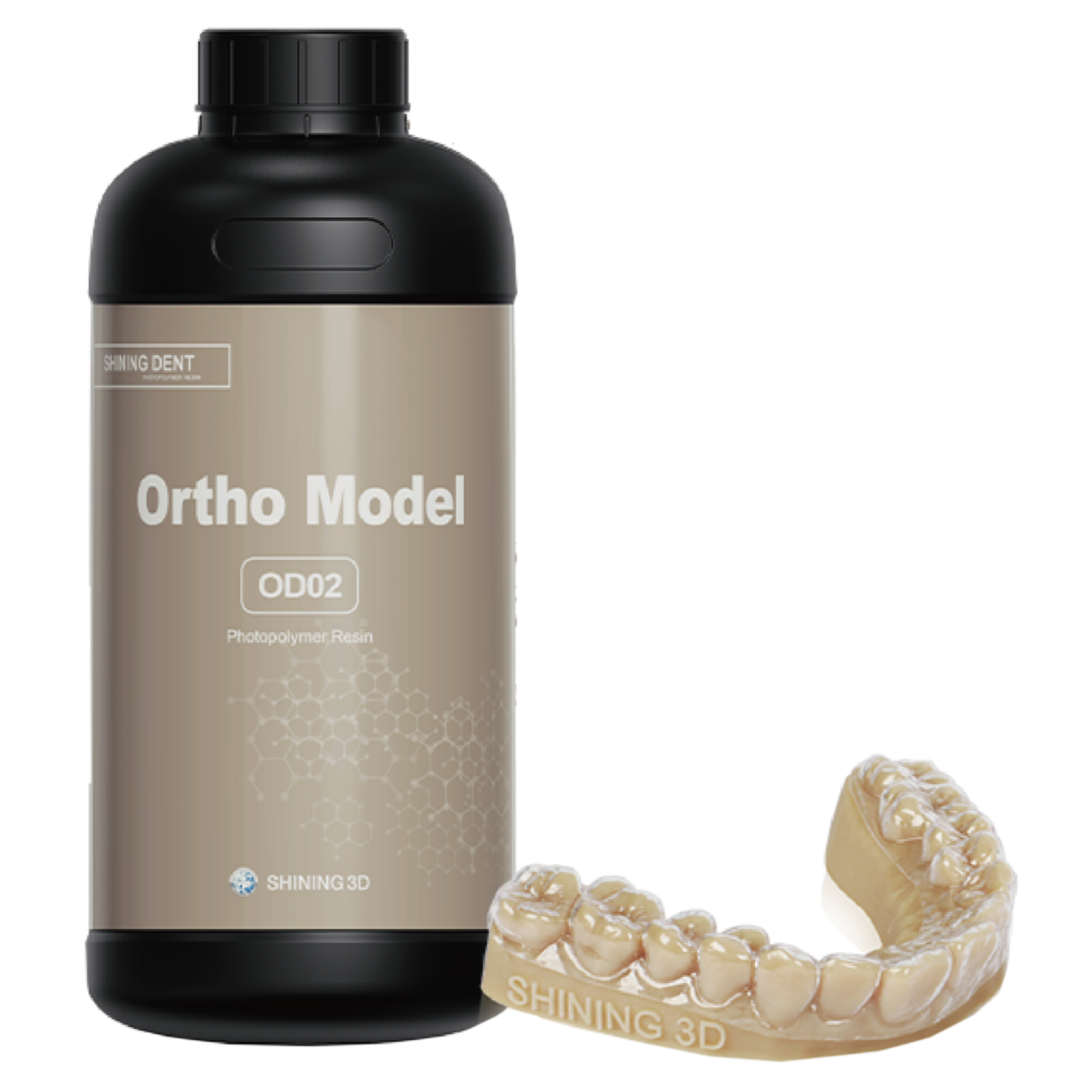

Ortho Model OD02 1kg

Ortho model OD02 is an excellent choice for printing models for the fabrication of aligners and orthodontic applications. The high heat resistance and hardness of OD02 allows for the cured models to withstand abrasion and maintain accuracy over multiple uses.

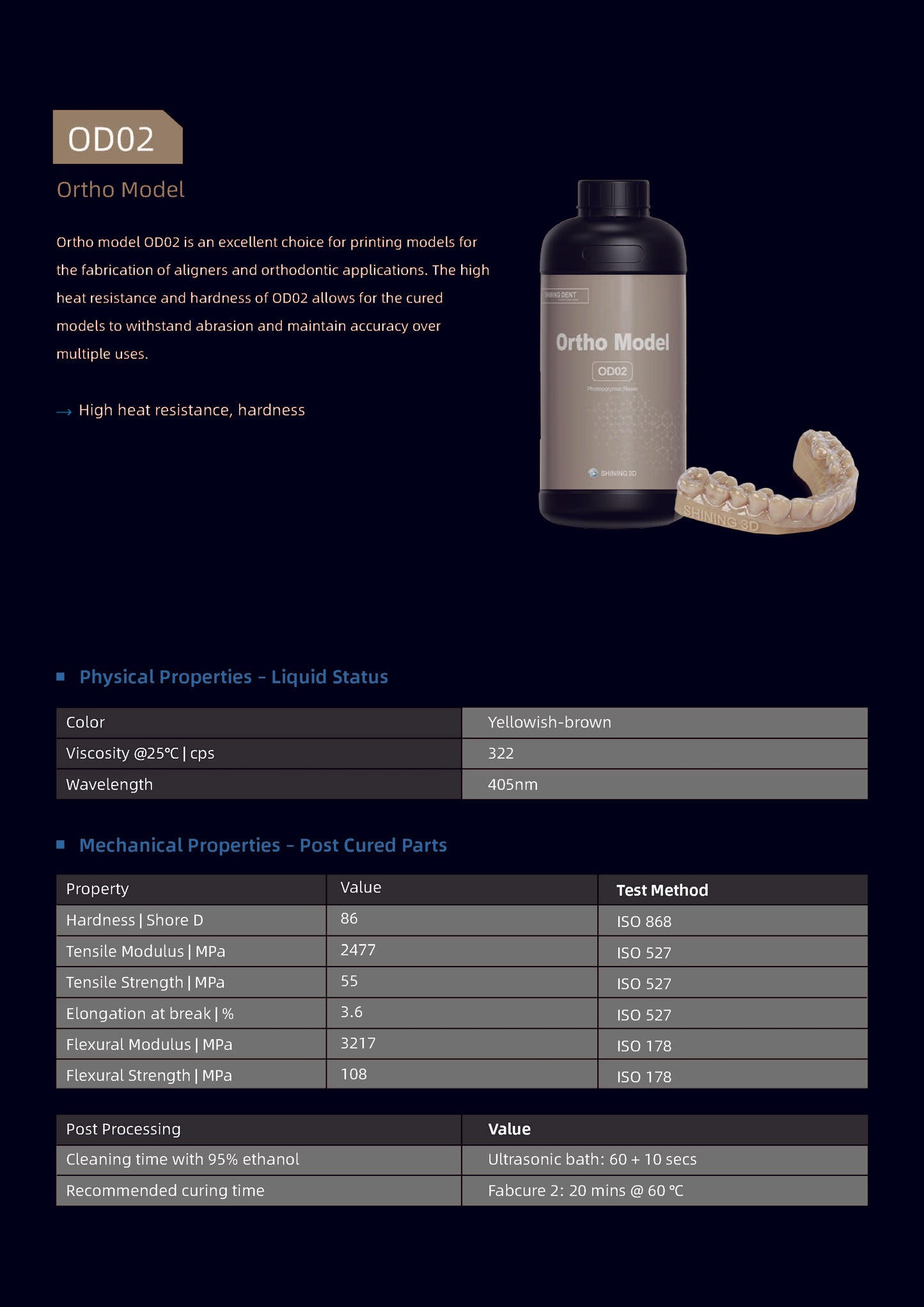

Physical Properties – Liquid Status

• Color Yellowish-brown
• Viscosity @25℃ | cps 322
• Wavelength 405nm

Mechanical Properties – Post Cured Parts

• Hardness | Shore D Value: 86 | Test Method: ISO 868
• Tensile Modulus | MPa Value: 2477 | Test Method: ISO 527
• Tensile Strength | MPa Value: 55 | Test Method: ISO 527
• Elongation at break | % Value: 3.6 | Test Method: ISO 527
• Flexural Modulus | MPa Value: 3217 | Test Method: ISO 178
• Flexural Strength | MPa Value: 108 | Test Method: ISO 178
• Cleaning time with 95% ethanol Ultrasonic bath: 60 + 10 secs
• Recommended curing time Fabcure 2: 20 mins @ 60˚C
