Discover the Aoralscan Elite Wireless by SHINING 3D

Elevate your dental practice with the Aoralscan Elite, a cutting-edge intraoral scanner that integrates Intraoral Photogrammetry Technology (IPG) to redefine precision and efficiency in dental care. Here’s why the Aoralscan Elite is a game-changer:

• Revolutionary 2-in-1 System: Seamlessly combines intraoral scanning and advanced photogrammetry, simplifying complex workflows and enhancing overall efficiency.

• Unmatched Accuracy: Leverages AI-enhanced scanning and coded patterns for superior precision, particularly beneficial for full-mouth implant procedures and All-on-X cases.

• Streamlined Workflow: Simplifies scanbody positioning and data acquisition, reducing manual effort and speeding up the scanning process.

• Extended Battery Life: A high capacity batter provides up to 2 hours of continuous use, ensuring maxium energy efficiency and uninterrupted operation.

• Advanced Technological Integration: Supported by SHINING 3D’s Dental Cloud, offering comprehensive oral health management, detailed diagnostics, and easy data sharing.

• Efficient and Effective: Incorporates AI technology for real-time data optimization, undercut detection, motion sensing, and refined scanning modes for accurate results and improved practice efficiency.

Transform your approach to dental diagnostics and treatment planning with the Aoralscan Elite, designed to deliver precision, efficiency, and a superior patient experience.

Technical Specification

Scan Field: IPG scanner tip: 19mm × 14mm  |  Standard scanner tip: 16mm × 12mm  |  Mini scanner tip: 12mm × 9mm
Scan Depth: 22 mm from exit surface of tip
Scan Principle: Non-contact scanner with structured light and Intraoral photogrammetry
Dimension: 247mm × 38mm × 37mm
Weight: 194g (with battery )
Data Output: STL, OBJ, PLY
Connector Port: Type-C

Recommended PC Configuration

CPU: Intel® Core™ i7-8700 or higher
RAM: Recommended 32 GB
Hard Disk Drive: 256GB SSD or above
Graphic Card (GPU): NVIDIA® RTX 2060 6 GB DDR3 or higher
Operating System: Windows 10 Professional (64-bit) or later versions of Windows operating system
Display Resolution: 1920 × 1080, 60Hz or higher
I/O Ports: Type-C

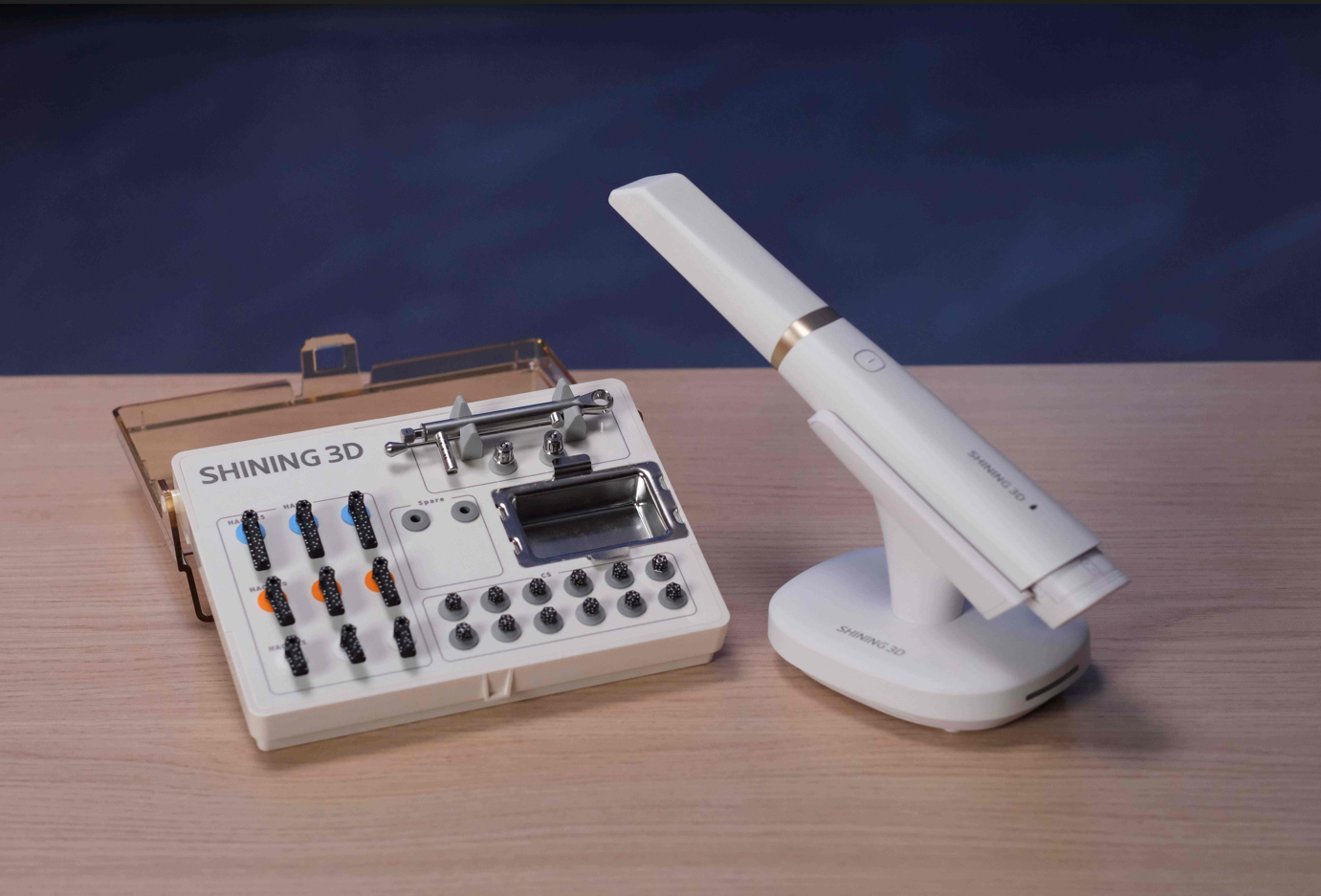

Remarks: Aoralscan Elite Wireless comes with 1 set of high accuracy coded scanbody. Please identify the type of scanbody for your practice from below:

HACS:
